GPCR-I-TASSER results for Q8NGP3

[Click on Q8NGP3_results.tar.bz2 to download the tarball file including all modeling results listed on this page]

  Submitted Sequence

>Q8NGP3
MPNFTDVTEFTLLGLTCRQELQVLFFVVFLAVYMITLLGNIGMIILISISPQLQSPMYFF
LSHLSFADVCFSSNVTPKMLENLLSETKTISYVGCLVQCYFFIAVVHVEVYILAVMAFDR
YMAGCNPLLYGSKMSRTVCVRLISVPYVYGFSVSLICTLWTYGLYFCGNFEINHFYCADP
PLIQIACGRVHIKEITMIVIAGINFTYSLSVVLISYTLIVVAVLRMRSADGRRKAFSTCG
SHLTAVSMFYGTPIFMYLRRPTEESVEQGKMVAVFYTTVIPMLNPMIYSLRNKDVKEAVN
KAITKTYVRQ

  Predicted Secondary Structure

Sequence                  20                  40                  60                  80                 100                 120                 140                 160                 180                 200                 220                 240                 260                 280                 300
                   |                   |                   |                   |                   |                   |                   |                   |                   |                   |                   |                   |                   |                   |                   |
MPNFTDVTEFTLLGLTCRQELQVLFFVVFLAVYMITLLGNIGMIILISISPQLQSPMYFFLSHLSFADVCFSSNVTPKMLENLLSETKTISYVGCLVQCYFFIAVVHVEVYILAVMAFDRYMAGCNPLLYGSKMSRTVCVRLISVPYVYGFSVSLICTLWTYGLYFCGNFEINHFYCADPPLIQIACGRVHIKEITMIVIAGINFTYSLSVVLISYTLIVVAVLRMRSADGRRKAFSTCGSHLTAVSMFYGTPIFMYLRRPTEESVEQGKMVAVFYTTVIPMLNPMIYSLRNKDVKEAVNKAITKTYVRQ
PredictionCCCCCCCCCSSSSCCCCCCCHHHHHHHHHHHHHHHHHHHHHHHHHHHHHCCCCCCCHHHHHHHHHHHHCCCCCCCHHHHHHHHHCCCCSSCHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHCCCCCCCCCCCCHHHHHHHHHHHHHHHHHHHHHHHHHHHSSCCCCCCCCCCCCCCCHHHHHHCCCCCCHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHCSCCCCCCCCCHHCCHHHHHHHHHHHHHHHCSSSSCCCCCCCCCCCCSSSSSSCCCHHCCCCHHHCCCCHHHHHHHHHHHHHHCCCC
Conf.Score9998621104786478992618999999999999999888699999852888777388887779988437101363999999714897886899999999999999999999999975413410611018812678899999999999999999999999845408898914854168088887705686276788888889999998999999999999998026775766533206488899799997444034837899988878978998822003124356440465989999999996530689

  Predicted Solvent Accessibility

Sequence                  20                  40                  60                  80                 100                 120                 140                 160                 180                 200                 220                 240                 260                 280                 300
                   |                   |                   |                   |                   |                   |                   |                   |                   |                   |                   |                   |                   |                   |                   |
MPNFTDVTEFTLLGLTCRQELQVLFFVVFLAVYMITLLGNIGMIILISISPQLQSPMYFFLSHLSFADVCFSSNVTPKMLENLLSETKTISYVGCLVQCYFFIAVVHVEVYILAVMAFDRYMAGCNPLLYGSKMSRTVCVRLISVPYVYGFSVSLICTLWTYGLYFCGNFEINHFYCADPPLIQIACGRVHIKEITMIVIAGINFTYSLSVVLISYTLIVVAVLRMRSADGRRKAFSTCGSHLTAVSMFYGTPIFMYLRRPTEESVEQGKMVAVFYTTVIPMLNPMIYSLRNKDVKEAVNKAITKTYVRQ
Prediction8724131210000000432301000013033313213333310020010003000000100200001001100000030002002542201030000001000000200000000000000000011120203003300000012012101300301011003030044120100000320001000132311011001101322331331033033101200010313632310000111021001023201100000032531333410000210321023003000020320140032004333248
Values range from 0 (buried residue) to 9 (highly exposed residue)

   Predicted normalized B-factor


  Top 10 templates used by GPCR-I-TASSER

Rank PDB
Hit
Iden1Iden2Cov.Norm.
Z-score
Download
Align.
                   20                  40                  60                  80                 100                 120                 140                 160                 180                 200                 220                 240                 260                 280                 300
                   |                   |                   |                   |                   |                   |                   |                   |                   |                   |                   |                   |                   |                   |                   |
Sec.Str
Seq
CCCCCCCCCSSSSCCCCCCCHHHHHHHHHHHHHHHHHHHHHHHHHHHHHCCCCCCCHHHHHHHHHHHHCCCCCCCHHHHHHHHHCCCCSSCHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHCCCCCCCCCCCCHHHHHHHHHHHHHHHHHHHHHHHHHHHSSCCCCCCCCCCCCCCCHHHHHHCCCCCCHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHCSCCCCCCCCCHHCCHHHHHHHHHHHHHHHCSSSSCCCCCCCCCCCCSSSSSSCCCHHCCCCHHHCCCCHHHHHHHHHHHHHHCCCC
MPNFTDVTEFTLLGLTCRQELQVLFFVVFLAVYMITLLGNIGMIILISISPQLQSPMYFFLSHLSFADVCFSSNVTPKMLENLLSETKTISYVGCLVQCYFFIAVVHVEVYILAVMAFDRYMAGCNPLLYGSKMSRTVCVRLISVPYVYGFSVSLICTLWTYGLYFCGNFEINHFYCADPPLIQIACGRVHIKEITMIVIAGINFTYSLSVVLISYTLIVVAVLRMRSADGRRKAFSTCGSHLTAVSMFYGTPIFMYLRRPTEESVEQGKMVAVFYTTVIPMLNPMIYSLRNKDVKEAVNKAITKTYVRQ
13v2yA 0.19 0.22 0.85 1.91Download ----------------DKENSIKLTSVVFILICCFIILENIFVLLTIWKTKKFHRPMYYFIGNLALSDLLAGVAYTANLLLSGATTYK-LTPAQWFLREGSMFVALSASVFSLLAIAIERYITMLKN--------NFRLFLLISACWVISLILGG--------LPIMGWNCISALSSC------STVLPLYHKHYILFCTTVF--TLLLLSIVILYCRIYSLVRTRNSRSSENALLKTVIIVLSVFIACWAPLFILLLLDVGCKVKTCDILFRAEYFLVLAVTNPIIYTLTNKEMRRAFIRIMGR-----
24iaqA 0.18 0.21 0.86 2.11Download ----------YIYQDSISLPWKVLLVMLLALITLATTLSNAFVIATVYRTRKLHTPANYLIASLAVTDLLVSILVMPISTMYTVTGRWTLGQVVCDFWLSSDITCCTASIWHLCVIALDRYWAITDAVEYSAKRTPKRAAVMIALVWVFSISISL---------PPCVVNTDH---------------ILYTVYSTVGAF-----YFPTLLLIALYGRIYVEARSRIIQKYMAARERKATKTLGIILGAFIVCWLPFFIISLVMPIHLAIFDFTWLGYLNSLINPIIYTMSNEDFKQAFHKLIRFK----
33emlA 0.19 0.22 0.89 3.85Download ------------------IMGSSVYITVELAIAVLAILGNVLVCWAVWLNSNLQNVTNYFVVSLAAADIAVGVLAIPFAITIS---GFCAACHGCLFIACFVLVLTQSSIFSLLAIAIDRYIAIRIPLRYNGLVTGTRAKGIIAICWVLSFAIGLTPMLGWNNCGGCGEGQVACLFEDVVP-----------MNYMVYFNFFACVLVPLLLMLGVYLRIFLAARRQLVHAAKSLAI-IVGLFALCWLPLHIINCFTFFCPDCSHAPLWLMYLAIVLSHTNSVVNPFIYAYRIREFRQTFRKIIRSHVLRQ
43uonA 0.18 0.24 0.89 2.57Download ------------------TFEVVFIVLVAGSLSLVTIIGNILVMVSIKVNRHLQTVNNYFLFSLACADLIIGVFSMNLYTLYTVIGYWPLGPVVCDLWLALDYVVSNASVMNLLIISFDRYFCVTKPLTYPVKRTTKMAGMMIAAAWVLSFILWAPAILFWQFIV--GVRTVEDGECYIQFF---------SNAAVTFGTAIAAFYLPVIIMTVLYWHISRASKSRINPSREKKVTRTILAILLAFIITWAPYNVMVLINTFCAIPNTVWTIGYWLCYINSTINPACYALCNATFKKTFKHLLM------
54bvnA 0.18 0.21 0.89 2.08Download ----------------LSQQWEAGMSLLMALVVLLIVAGNVLVIAAIGSTQRLQTLTNLFITSLACADLVVGLLVVPFGATLVVRGTWLWGSFLCELWTSLDVLCVTASVETLCVIAIDRYLAITSPFRYQSLMTRARAKVIICTVWAISALVSFLPIMMH----WWRDEDPQALKCYQD----PGCCDFVTNRAYAIASSIISFYIPLLIMIFVALRVYREAKE----MREHKALKTLGIIMGVFTLCWLPFFLVNIVNVFNRDPKWLFVAFNWLGYANSAMNPIILC-RSPDFRKAFKRLLA------
63emlA 0.19 0.22 0.89 4.20Download -------------------MGSSVYITVELAIAVLAILGNVLVCWAVWLNSNLQNVTNYFVVSLAAADIAVGVLAIPFAIT--ISTGFCAACHGCLFIACFVLVLTQSSIFSLLAIAIDRYIAIRIPLRYNGLVTGTRAKGIIAICWVLSFAIGLTPMLGWNNCGGCGEGQVACLFEDVVP-----------MNYMVYFNFFACVLVPLLLMLGVYLRIFLAARRQLVHAAKSLAIIVGLFALCWLPLHIINCF-TFFCPDCSHAPLWLMYLAIVLSHTNSVVNPFIYAYRIREFRQTFRKIIRSHVLRQ
74bvnA 0.18 0.21 0.89 2.99Download ----------------LSQQWEAGMSLLMALVVLLIVAGNVLVIAAIGSTQRLQTLTNLFITSLACADLVVGLLVVPFGATLVVRGTWLWGSFLCELWTSLDVLCVTASVETLCVIAIDRYLAITSPFRYQSLMTRARAKVIICTVWAISALVSFLPIMMHWWR----DEDPQALKCYQD----PGCCDFVTNRAYAIASSIISFYIPLLIMIFVALRVYREAKEQ---MREHKALKTLGIIMGVFTLCWLPFFLVNIVNNRDLVPKWLFVAFNWLGYANSAMNPIILC-RSPDFRKAFKRLLA------
82z73A 0.17 0.24 0.94 2.67Download WYNPSIVVHPHWREFDQVPAVYYSLGIFIGICGIIGCGGNGIVIYLFTKTKSLQTPANMFIINLAFSDFTFSLVNGPLMTISCFLKKWIFGFAACKVYGFIGGIFGFMSIMTMAMISIDRYNVIGRPMAASKKMSHRRAFIMIIFVWLWSVLWAIGPIFGWGCSFDYISR----------------DSTTRSNILCMFILG---FFGPILIIFFCYFNIVMAQAGANAEMRLAKISIVIVSQFLLSWSPYAVVALLAQFGPLEWVTPYAAQLPVMFAKASAIHNPMIYSVSHPKFREAISQTFPWVLTCC
93emlA 0.19 0.22 0.89 6.04Download ------------------IMGSSVYITVELAIAVLAILGNVLVCWAVWLNSNLQNVTNYFVVSLAAADIAVGVLAIPFAITIS---GFCAACHGCLFIACFVLVLTQSSIFSLLAIAIDRYIAIRIPLRYNGLVTGTRAKGIIAICWVLSFAIGLTPMLNCGQSQGCGEGQVACLFEDVVP-----------MNYMVYFNFFACVLVPLLLMLGVYLRIFLAARRQLVHAAKSLAI-IVGLFALCWLPLHIINCFTFFCPDCSHAPLWLMYLAIVLSHTNSVVNPFIYAYRIREFRQTFRKIIRSHVLRQ
103emlA 0.19 0.22 0.90 5.63Download I------------------MGSSVYITVELAIAVLAILGNVLVCWAVWLNSNLQNVTNYFVVSLAAADIAVGVLAIPFAIT--ISTGFCAACHGCLFIACFVLVLTQSSIFSLLAIAIDRYIAIRIPLRYNGLVTGTRAKGIIAICWVLSFAIGLTPMLNCGQSQGCGEGQVACLFEDVVPMNYMVYFNFFACVLVPL-----------LLMLGVYLRIFLAARRQLVHAAKSLAIIVGLFALC-WLPLHIINCFTFFCPDCSHAPLWLMYLAIVLSHTNSVVNPFIYAYRIREFRQTFRKIIRSHVLRQ
(a)All the residues are colored in black; however, those residues in template which are identical to the residue in the query sequence are highlighted in color. Coloring scheme is based on the property of amino acids, where polar are brightly coloured while non-polar residues are colored in dark shade. (more about the colors used)
(b)Rank of templates represents the top ten threading templates used by GPCR-I-TASSER.
(c)Ident1 is the percentage sequence identity of the templates in the threading aligned region with the query sequence.
(d)Ident2 is the percentage sequence identity of the whole template chains with query sequence.
(e)Cov. represents the coverage of the threading alignment and is equal to the number of aligned residues divided by the length of query protein.
(f)Norm. Z-score is the normalized Z-score of the threading alignments. Alignment with a Normalized Z-score >1 mean a good alignment and vice versa.
(g)Download Align. provides the 3D structure of the aligned regions of the threading templates.
(h)The top 10 alignments reported above (in order of their ranking) are from the following threading programs:
       1: FFAS-3D   2: SPARKS-X   3: MUSTER   4: HHSEARCH2   5: HHSEARCH I   6: Neff-PPAS   7: HHSEARCH   8: pGenTHREADER   9: wdPPAS   10: PROSPECT2

  Top 5 Models predicted by GPCR-I-TASSER

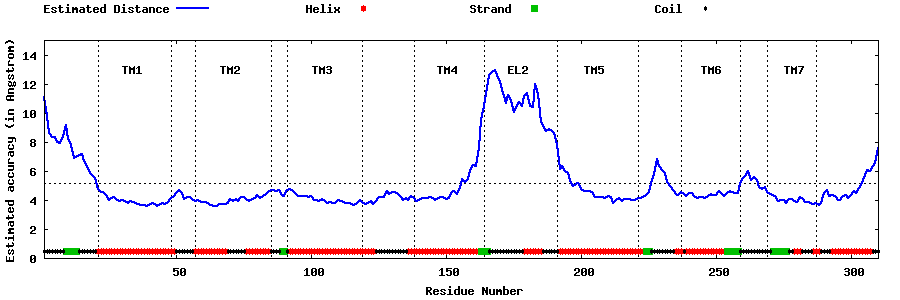

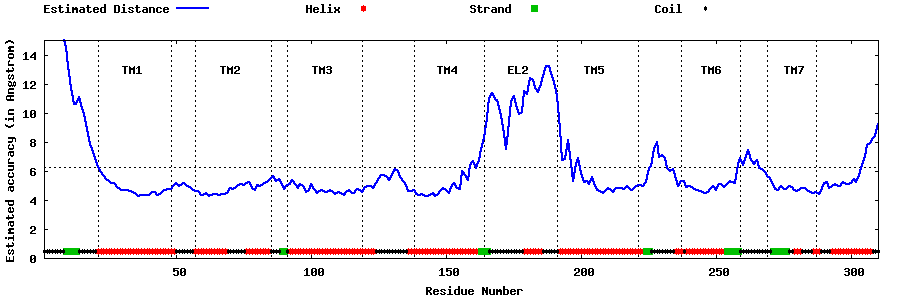

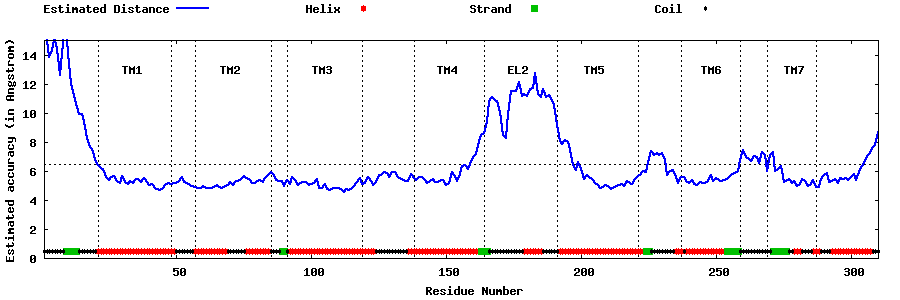

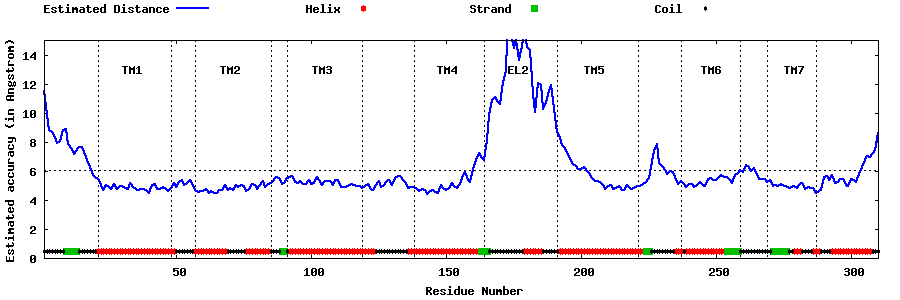

Generated 3D models Estimated local accuracy of models
  • Download Model 1
  • C-score=-0.01 (Read more about C-score)
  • Estimated TM-score = 0.71±0.11
  • Estimated RMSD = 6.3±3.8Å

  • Download Model 2
  • C-score = -2.13

  • Download Model 3
  • C-score = -0.74

  • Download Model 4
  • C-score = -3.14

  • Download Model 5
  • C-score = -3.33





  •  Please cite following articles when you use the GPCR-I-TASSER server:
    J Zhang, J Yang, R Jang, Y Zhang. Hybrid structure modeling of G protein-coupled receptors in the human genome, submitted (2015).
