Annotation on the I-TASSER Results


The outputs of the I-TASSER modeling results are generally summarized in a webpage, the link of which is sent to the users after the modeling is completed (see an example of I-TASSER output). This page includes a detailed explanation on the data listed on the I-TASSER output page.

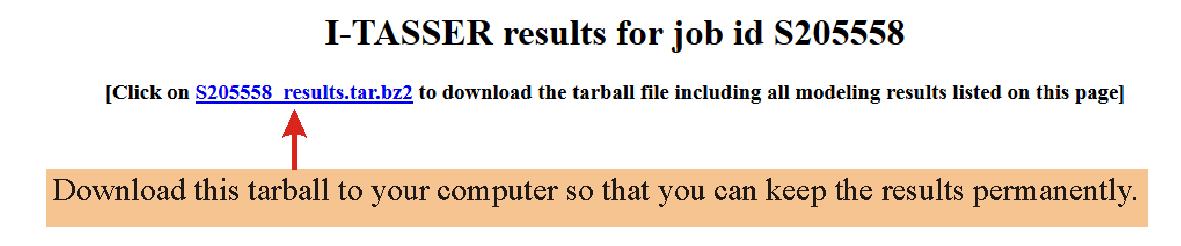

Download the complete set of I-TASSER results


Figure 1. The tarball of I-TASSER modeling results.

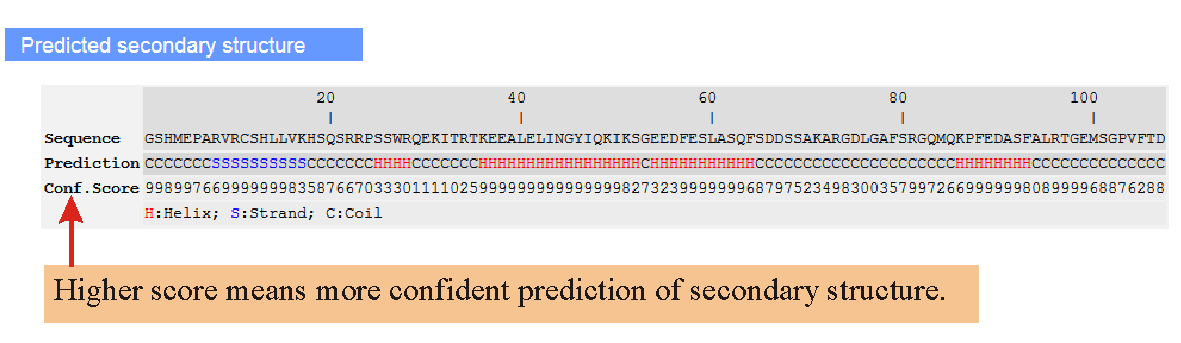

Predicted Secondary Structure


Figure 2. The sequence-based prediction of secondary structure by PSSpred.

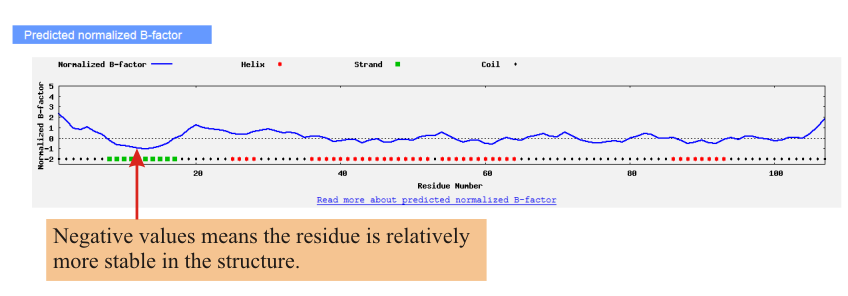

Predicted normalized B-factor


Figure 3. The predicted normalized B-factor by ResQ.

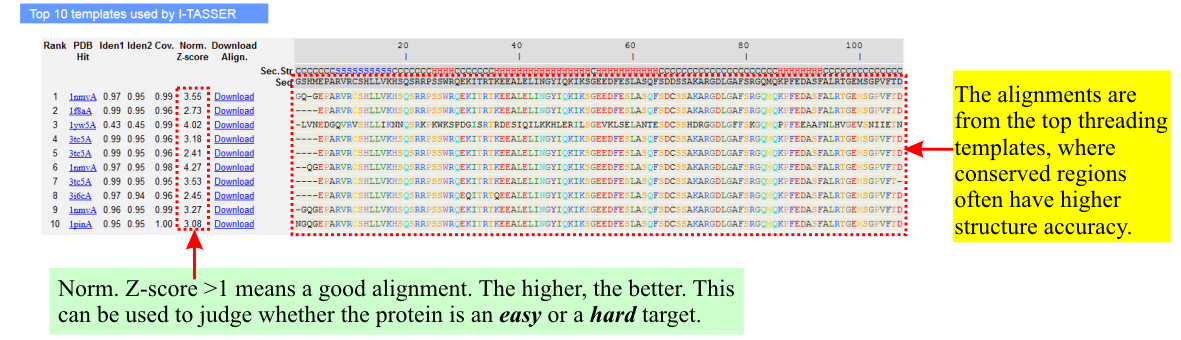

Top 10 templates used by I-TASSER


Figure 4. The top 10 template-query alignments generated by LOMETS.

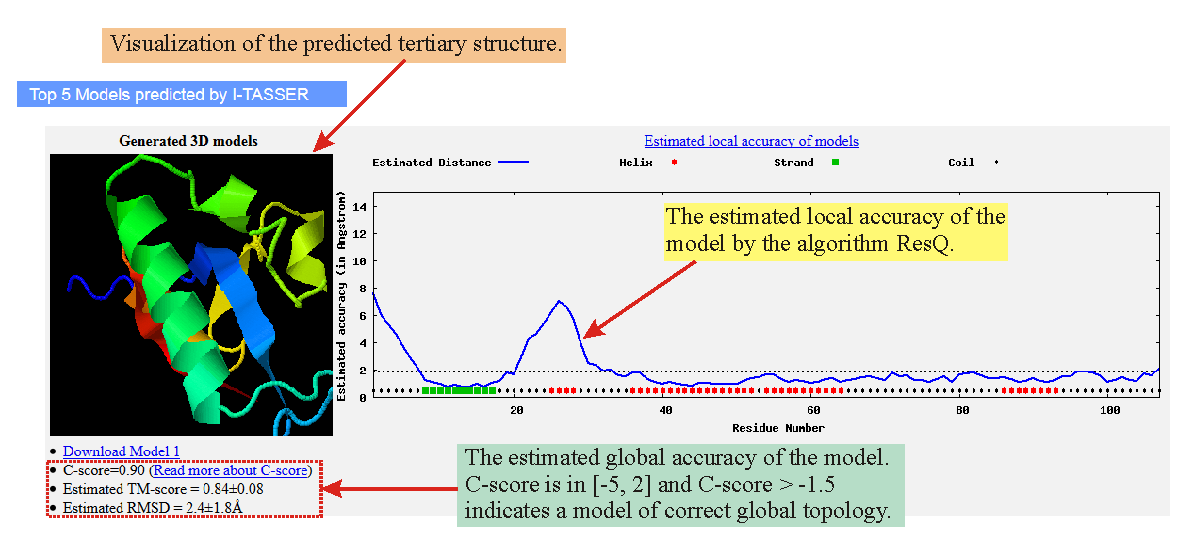

Top 5 Models predicted by I-TASSER


Figure 5. The predicted 3D model and the estimated global and local accuracy.

Proteins structurally close to the target in the PDB


Figure 6. The structure alignment between the first I-TASSER model and the top 10 most similar structure templates in PDB.

Predicted ligand binding sites


Figure 7. The predicted ligand-binding sites.

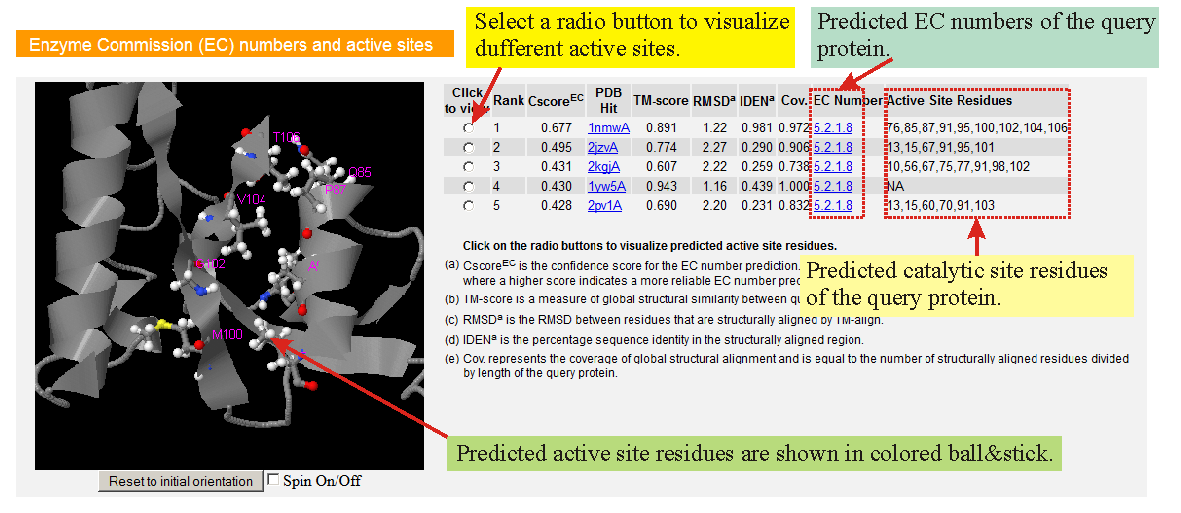

Predicted enzyme commission numbers and active sites


Figure 8. The predicted enzyme commission numbers and active sites.

Predicted gene ontology terms


Figure 9. The top 10 GO templates in PDB and consensus prediction of GO terms in the three function categories of GO.

Need more help?
